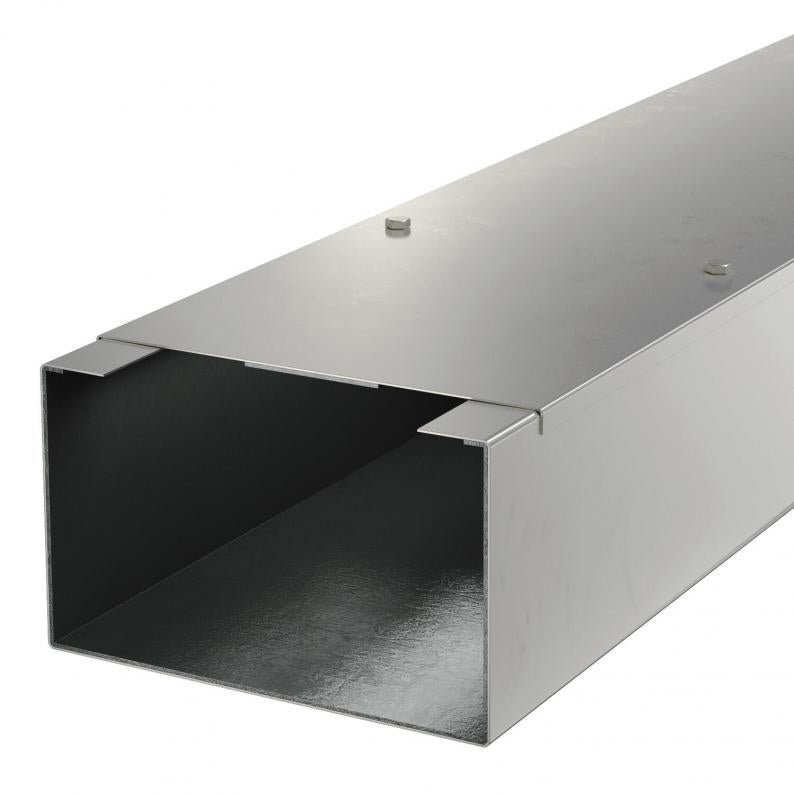

Metal installation duct PLMR for outdoor applications

Type PLMR 1220 A2
|
Item no. 7218200
|
EAN 4012197422783
Item no. / Type
7218200 / PLMR 1220 A2
Hossz
2000 mm
B méret
200 mm
H méret
121 mm
Szín
nemesacél

Smallest selling unit: 2 m

m

Description

Installation duct made from metal with intumescent fire protection mesh. Prevents the spread of fire and protects against the impacts of cable fires. Fire resistance of up to 90 minutes. With matching fittings, obstacles in outdoor areas can be overcome easily. Suitable for the mounting on FangFix concrete block. Can be used as a special solution when laying cables over firewalls, according to expert opinion. Solution according to EltAnlagen 2020 of BMI +AMEV. Only certified pre-terminated fittings may be used. Screws included for fastening the duct cover. When used with photovoltaic cables over firewalls, this may need to be coordinated with the relevant authorities.
  • CO₂-lábnyom (PCF)
  • Műanyagmentes csomagolás

Technical data

Méretek

Hossz2000 mm
Szélesség200 mm
Magasság120 mm
B méret200 mm
H méret121 mm

Műszaki adatok

Hasznos keresztmetszet18500 mm²
A lángálló oldalak darabszáma4
Fedélrögzítésösszecsavaroz
Méret200x120x2000
Felületfelületkezelés nélkül
Anyagrozsdamentes acél, 1.4301
Színnemesacél

page.product.environmentalData.environmentalData

CO2-lábnyom (GWP) bölcsőtől a kapuig33,2801 kg CO2e / 1 Méter

Accessories

Rendszertartozékok
Type
MMS+ P 7.5x75 A4

Smallest selling unit: 50 Darab

Darab

Type
F-FIX-S10

Smallest selling unit: 1 Darab

Darab

Type
F-FIX-B10

Smallest selling unit: 10 Darab

Darab
